Good Quality Die-cast Aluminum Trimless Down Light COB Recessed
About Us -- GU10 Downlight Manufacture
TOSEO Lighting is a direct-owned downlight manufacturer with a
history of more than 15 years, located in Nanhai District, Foshan
City. Since 2007,
the factory covers an area of more than 15,000 square meters and
employs more than 300 workers. Our products are GU10 downlight
accessories
and LED downlight accessories, including: waterproof downlight,
recessed downlight, fireproof downlight, boundless downlight.
TOSEO's products are
distributed globally, with major markets in Europe, Asia, the
Pacific, the Middle East, South Africa and North Africa. We provide
exclusive OEM/ODM
services for every customer. We try our best to serve customers and
look forward to common prosperity. If you are interested in our
GU10 and LED products,
we are constantly developing new products. Please feel free to
contact us. We look forward to long-term cooperation with you.
Quick detail of GU10 Recessed Downlight
IP Rating :IP20
Lamp Body Material:Die-casting Alu
Color: White/Black
Application: Living Room,Home Hotel
Diameter: L140xW94xH144mm
Brand Name: TOSEO
Certification: CE, RoHS
Warranty: 24 months
Model Number: TD8353
Minimum Order Quantity: 200
Price: negotiable
Packaging Details:60pcs per carton. Master carton size
40x32x41.5cm. Net weight 10kgs. Gross weight 12kgs.
Delivery Time: 31days
Payment Terms: L/C, T/T

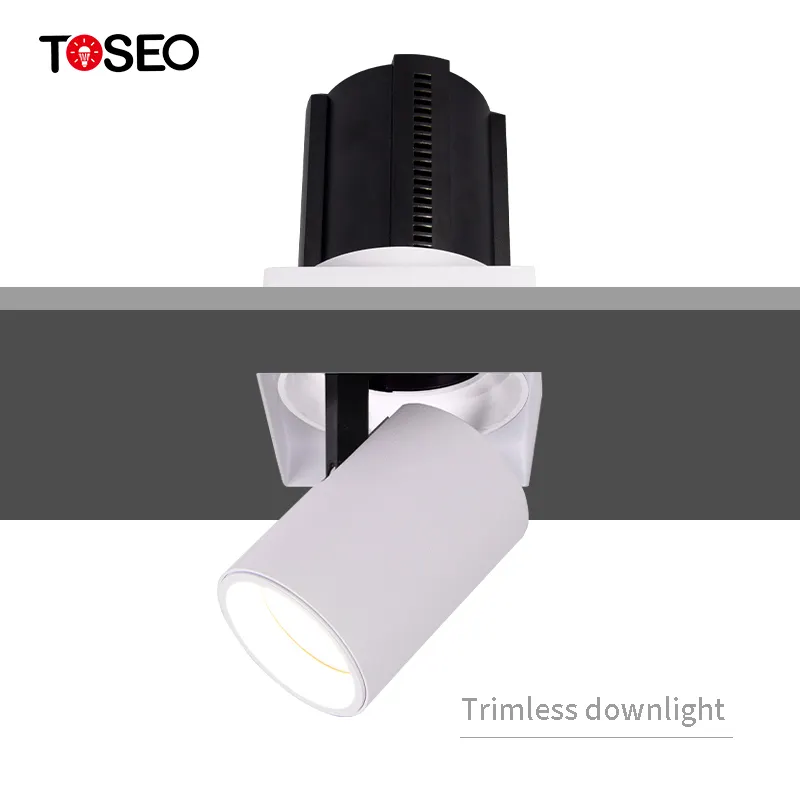

Product name | Trimless Anti Glare Downlight |
Model | TS8353 |
Material | Aluminum |
Size | L140xW94xH144mm |
Cutting | 97mm |
Lampholder | GU5.3/GU10 |
Voltage | AC 220V( ± 10%) |
Packaging | 30pcs per carton, White inner box,Brown Mastercarton |
Weight | NW: 8kgs/GW: 10kgs |
Warranty | 2 years |
Description Of GU10 Recessed Downlight
1.IP20
2.Black replace the light bulb
3.Flat cover/cambered cover/cambered angle inner cover
1.Round mounting trim, cast aluminum, with spring fitting, for
ceiling mounting.
2. This is an indoor recessed downlight used with a die cast frame.
3. It's easy to installing on the ceiling
4. There are many colors to choose from, such as matte white, matte
black, sand white, sand black, gold, satin nickel, chrome.
5. Die cast aluminum, pure aluminum, steel and aluminum. And any
material you can choose from.
Packaging & delivery
1.60pcs per carton. Master carton size 40x32x41.5cm. Net weight
10kgs. Gross weight 12kgs.
2. White inner box,Brown Master carton .
3. OEM available in individual color packaging. In order to better
ensure the safety of your goods, Foshan Port will provide you with
professional,
environmental protection, convenient, efficient packaging and
transportation services
INSTALLATION INSTRUCTIONS
Turn off the power, COUPEL LE COURANT! Corte corrient
1. Please retain these installation instructions for reference.
Before installing or replacing the lamp, ensure that the lamp power
supply is off, and the high voltage level
3 is off. This product must be installed and operated by a
qualified electrician in accordance with current IEE regulations.
Select a suitable installation
location for the luminaire and check that there is adequate free
ventilation around the fitting (see back of this flyer for
details). Cut a hole in the ceiling to the right size.
Fix the stirrup bracket and connecting block on the lamp body,
insert the cable into the connecting block, and ensure that the
wiring of connecting accessories is connected to the ground
RATINGS
1. This fitting can be used with 240V GU10 lamps
2. Fire rated versions are of class 1 construction and must be
earthed
3. Non fire rated versions are of class 2 construction and double
insulated
4. CE approved
