Product specification
1. The downlights with Die casting aluminum good for heating
dissipation thus enabling more effective cooling.iron spring and
clip excellent workmanship and easy to install.
2. The downlights Adjustable angle,you can swing the inner ring to
adjust the angle of the light source as needed.
3. Downlight warranty is 2 years with lifespan of 50,000 hours.

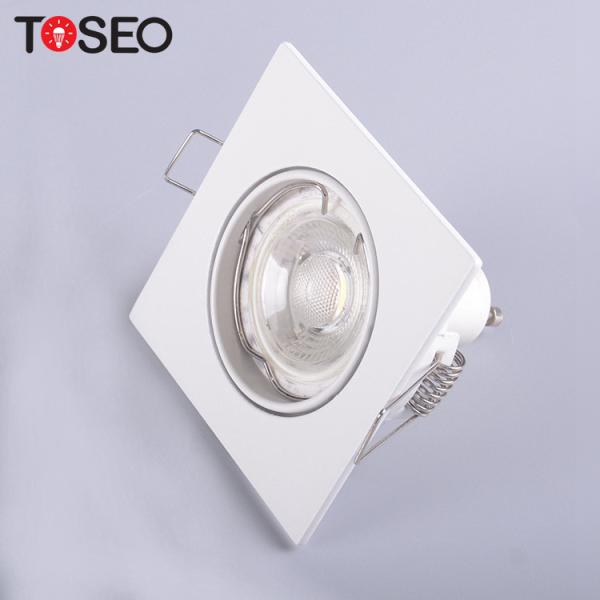

Quick detail of GU10 Recessed Downlight
IP Rating :IP20
Lamp Body Material:Die-casting Alu
Application: Living Room,Bedroom,Corridor
Color: White/Black
Warranty: 24 Months
Diameter: 81mm*81mm
Lamp Type: GU5.3/GU10
Cutting: 68mm
Place of Origin: Guangdong, China
Brand Name: TOSEO
Certification: CE, RoHS
Model Number: TS6250
Minimum Order Quantity: 300
Price: Negotiable
Packaging Details: 100pcs per carton. Master carton size
52.5x42x25cm. Net weight 7kgs. Gross weight 9kgs.
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: Quantity(Pieces) 1 - 1000 >1000 Est. Time(days)
45
Description Of GU10 Recessed Downlight
1. Flat cover/cambered cover/cambered angle inner cover
2. Adjustable
3. Round shape mounting trim in cast aluminium with springs for trim
installation on a ceiling.
4. It is a recessed downlight for indoor use with a die-cast frame.
5. It is easy to install with springs.
6. There are many color for options, such as matte white, matte
black, sand white, sand black, gold, satin nickel, chrome.
7. Die-casting alu, pure alu, steel & alu.and any material for
options.
Style | Recessed Downlights |
Material | Die-cast Aluminum |
Size | 81x81mm |
Cutting | 68mm |
Base type | GU5.3/GU10 |
Voltage | AC 220-240V |
Model | TS6250 |
Warranty | 2 years |
Packaging & delivery
1.100pcs per carton. Master carton size 52.5x42x25cm. Net weight
10kgs. Gross weight 12kgs.
2. White inner box,Brown Master carton .
3. OEM individual color package available. Box To better ensure the
safety of your goods, professional, environmentally
friendly, convenient and efficient packaging services will be
provided.Port FOSHAN
INSTALLATION INSTRUCTIONS
Turn off the power COUPEL LE COURANT!STROMABSHALTEN!CORTE CORRIENT
1. Before installation or lamp replacement ensure the power supply
to the luminaire is switched off and is turned off
2. This product must be installed by a qualified electrician in
accordance with current IEE regulations
3. Select a suitable mounting location to install the luminaire,
checking that there is adequate free air ventilation around the
fitting (see reverse of this leaflet for further details)
4. cut a suitable size hole in the ceiling
5. Fix the stirrup bracket and connector block to the luminaire
body
6. Terminate the cable into the connector block , ensuring the
fitting is earthed
RATINGS
1. This fitting can be used with 240V GU10 lamps
2. Fire rated versions are of class 1 construction and must be
earthed
3. Non fire rated versions are of class 2 construction and double
insulated
