Profile of Toseo Lighting
Toseo is a perfessional manufacturer with more than 15 years
experience in producing and exporting.
We have a series of strict production standards, all products are
manufactured according to CE, RoHs standards.
High-end market is our main market.

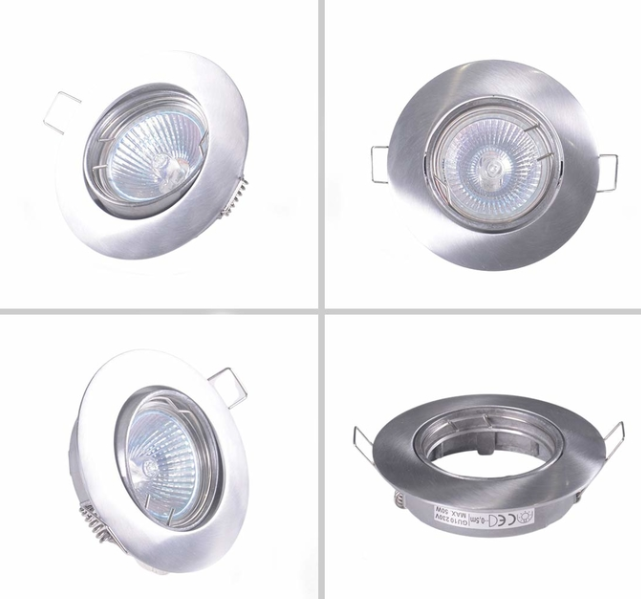

Quick detail of GU10 Recessed Downlight
IP Rating :IP20
Lamp Body Material:Die-casting Alu
Application: Living Room,Bedroom,Corridor
Color: White/Black
Warranty: 24 Months
Diameter: 90mm
Lamp Type: GU5.3/GU10
Cutting: 74mm
Place of Origin: Guangdong, China
Certification: CE, RoHS
Model Number: TS6155
Minimum Order Quantity: 300
Price: Negotiable
Packaging Details: 100pcs per carton. Master carton size
47.5x38x25cm. Net weight8.6kgs. Gross weight 10.6kgs.
Delivery Time: 45days
Payment Terms: L/C, T/T
Product specification
1. Material:Die-casting Alu.
2. Diameter : 90mm ,Cutting:74mm .
3. Lampholder: GU5.3/Gu10
4. Adjustable Inner Ring: The inner ring of the light can swing,
you can swing the inner ring to adjust the angle of the light
source as needed.
5. Downlight warranty is 2 years with lifespan of 50,000 hours.
6. IP20
7. Front replace the light bulb
8. Flat cover/cambered cover/cambered angle inner cover
Product description
1.Round shape mounting trim in cast aluminium with springs for trim
installation on a ceiling.
2.It is a recessed downlight for indoor use with a die-cast frame.
3.It is easy to install with springs.
4.There are many color for options, such as matte white, matte
black, sand white, sand black, gold, satin nickel, chrome.
5.Die-casting alu, pure alu, steel & alu.and any material for
options.
Style | Recessed Downlights |
Material | Die-cast Aluminum |
Dia | 90mm |
Cutting | 74mm |
Base type | GU5.3/GU10 |
Voltage | 220V( ± 10%) |
Model | TS6155 |
Warranty | 2 years |
Packaging & delivery
1.100pcs per carton. Master carton size 47.5x38x25cm. Net
weight8.6kgs. Gross weight 10.6kgs..
2. White inner box,Brown Master carton .
3. OEM individual color package available. Box To better ensure the
safety of your goods, professional, environmentally
friendly, convenient and efficient packaging services will be
provided.Port FOSHAN
INSTALLATION INSTRUCTIONS
Turn off the power COUPEL LE COURANT!STROMABSHALTEN!CORTE CORRIENT
1. please retain these installation instructions for future
reference
2. Before installation or lamp replacement ensure the power supply
to the luminaire is switched off and is turned off
3. This product must be installed by a qualified electrician in
accordance with current IEE regulations
4. cut a suitable size hole in the ceiling
5. Fix the stirrup bracket and connector block to the luminaire
body
6. Terminate the cable into the connector block , ensuring the
fitting is earthed
RATINGS
1. This fitting can be used with 240V GU10 lamps
2. Fire rated versions are of class 1 construction and must be
earthed
3. Non fire rated versions are of class 2 construction and double
insulated
4. CE approved
