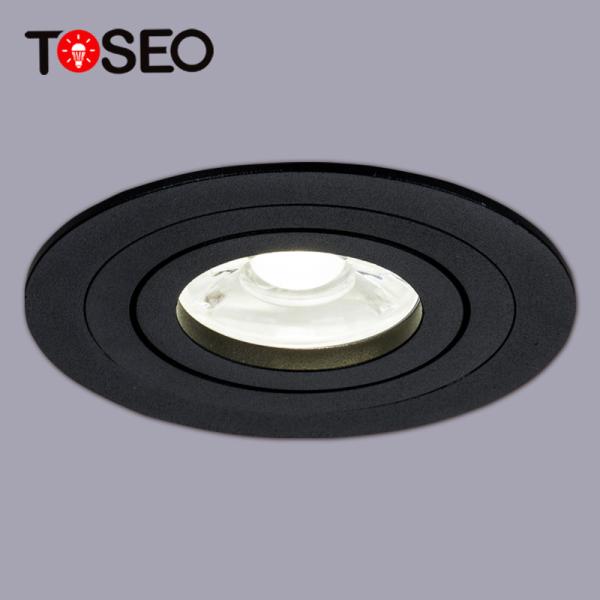

IP20 35W Recessed Downlight Fixtures For Kitchen 80mm Cut Out Diameter

    Buy cheap IP20 35W Recessed Downlight Fixtures For Kitchen 80mm Cut Out Diameter from wholesalers

    Buy cheap IP20 35W Recessed Downlight Fixtures For Kitchen 80mm Cut Out Diameter from wholesalers
    • Buy cheap IP20 35W Recessed Downlight Fixtures For Kitchen 80mm Cut Out Diameter from wholesalers
    • Buy cheap IP20 35W Recessed Downlight Fixtures For Kitchen 80mm Cut Out Diameter from wholesalers

    IP20 35W Recessed Downlight Fixtures For Kitchen 80mm Cut Out Diameter

    Ask Lasest Price
    Brand Name : TOSEO
    Model Number : TS5166
    Certification : CE, RoHS.
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 45
    Delivery Time : 45
    • Product Details
    • Company Profile

    IP20 35W Recessed Downlight Fixtures For Kitchen 80mm Cut Out Diameter

    35W Recessed GU10 Downlight Fixtures For Kitchen 80mm Cut Out Diameter

    Profile of Toseo Lighting

    Toseo is a perfessional manufacturer with more than 15 years experience in producing and exporting.

    We have a series of strict production standards, all products are manufactured according to CE, RoHs standards.

    High-end market is our main market. We growing very well together with our clients base on mutual supports..

    We are looking forward to establish a good cooperation with you.


    Product specification of recessed downlight
    1. Made of high-quality materials: The product is made of high-quality iron springs and clips, which are well-made and easy to install.
    2. The inner ring can be adjusted: the inner ring of the light can be swung, you can swing the inner ring to adjust the angle of the light source according to your needs.
    3. Multiple choices of lamp body color and inner ring: according to customer choice, there are three colors to choose from: chrome plating, matte white, sand black, and sand white.

    Quick detail of GU10 Recessed Downlight

    IP Rating :IP20

    Lamp Body Material:Die-casting Alu

    Application: Living Room,Bedroom,Corridor

    Color: White/Black

    Warranty: 24 Months

    Diameter: 92mm

    Lamp Type: GU5.3/GU10

    Cutting: 80mm

    Place of Origin: Guangdong, China

    Brand Name: TOSEO

    Certification: CE, RoHS

    Model Number: TS5166

    Minimum Order Quantity: 300

    Price: Negotiable

    Packaging Details: 100pcs per carton. Master carton size 52.5x42x20.5cm. Net weight 12.5kgs. Gross weight 14.5kgs

    Delivery Time: 45days

    Payment Terms: L/C, T/T

    Supply Ability: Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 45

    Description Of GU10 Recessed Downlight


    1.Round shape mounting trim in cast aluminium with springs for trim installation on a ceiling.

    2.It is a recessed downlight for indoor use with a die-cast frame.

    3.It is easy to install with springs.

    4.There are many color for options, such as matte white, matte black, sand white, sand black, gold, satin nickel, chrome.

    5.Die-casting alu, pure alu, steel & alu.and any material for options.

    Style
    Die Cast Recessed Downlights
    Material
    Die-cast Aluminum
    Dia
    92x25mm
    Cutting
    80mm
    Base type
    GU5.3/GU10
    Voltage
    12V/AC 220V-240V
    Model
    TS5166
    Warranty
    2 years

    INSTALLATION INSTRUCTIONS

    Turn off the power COUPEL LE COURANT!STROMABSHALTEN!CORTE CORRIENT

    1. please retain these installation instructions for future reference

    2. Before installation or lamp replacement ensure the power supply to the luminaire is switched off and is turned off

    3. This product must be installed by a qualified electrician in accordance with current IEE regulations

    4. Select a suitable mounting location to install the luminaire, checking that there is adequate free air ventilation around the fitting (see reverse of this leaflet for further details)

    5. cut a suitable size hole in the ceiling

    6. Fix the stirrup bracket and connector block to the luminaire body

    7. Terminate the cable into the connector block , ensuring the fitting is earthed


    RATINGS

    1. This fitting can be used with 240V GU10 lamps

    2. Fire rated versions are of class 1 construction and must be earthed

    3. Non fire rated versions are of class 2 construction and double insulated

    4. CE approved


    Just For You

    Installation Notes

    Notices:
    1. Open the packaging, check the products carefully, and take them gently.
    2. The wire must be passed VDE certification of three core cable, To reduce the risk of fire hazard.
    3. It must be two-core cable connecting the floodlight, The brown line is used to connect the live wire, the blue line to the neutral wire, yellow-green line is the ground wire, Must pay attention to the wiring, don't take the wrong wire.
    4. Wire copper is not exposed outside of the power terminal holes, To avoid a short circuit or get electrocuted.
    5. Installation and removal products, please disconnect the light's power to avoid the risk of electric shock.
    Applications:
    Widely used in hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, , backlight and so on.


    Certification

    FAQ

    Q1. Can I have a sample order for led light?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A: 5-7 days for Sample preparing ,45-60 working days for mass production.

    Q3. How to proceed an order for led light?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

    Q4. Is it OK to print my logo on led light product?
    A: Yes. Please inform us formally before our production.

    Q5: Do you offer guarantee for the products?
    A: Yes, we offer 3 years warranty to our products.

    Q6: How to deal with the faulty?
    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
